Proscend 5000H Series SHDSL.bis routers comply with ITU-T G.991.2 (2004) standard optimized for small to medium size business environment. The SHDSL.bis interface provides business-class, multi-range from 192kbps to 5.696Mbps (2-wire router) and 384Kbps to 11.392Mbps (4-wire router) symmetric payload rates over existing copper wires. Proscend 5000H operates the SHDSL link in either EFM mode or ATM mode. It is designed to deliver business class Ethernet Service under EFM mode while providing the flexibility to be compatible with the existing DSLAM infrastructure under ATM mode.

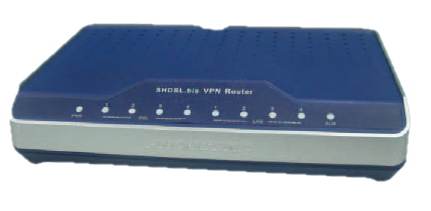

Proscend 6200 G.SHDSL.bis EFM/ATM VPN Router provides secure and symmetrical high-speed connectivity over existing copper-line infrastructure that is ideal for SOHO and SME users. It features the latest G.ShdsI.bis technology supporting symmetrical upstream and downstream date rates up to 15.3Mbps/Pair (TC-PAM 128). Four pairs can be bonded together for aggregated bandwidth over 61Mbps. Proscend 6200 Series VPN Router operates the SHDSL link in either EFM mode or ATM mode. It is designed to deliver business class Ethernet Service under EFM mode while providing the flexibility to be compatible with the existing DSLAM infrastructure under ATM mode.
Proscend 5200N Series 2/4/8-Wire SHDSL.bis EFM Bridges/Routers comply with the latest G.SHDSL.bis technology standards and supports symmetric data rate up to 15.3Mbps/Pair under TC-PAM 128. Up to four pairs can be bonded together for aggregated bandwidth over 61 Mbps. It provides a secure and symmetrical high-speed connectivity over existing copper-line infrastructure that is ideal for service providers as well as SOHO and SME users.

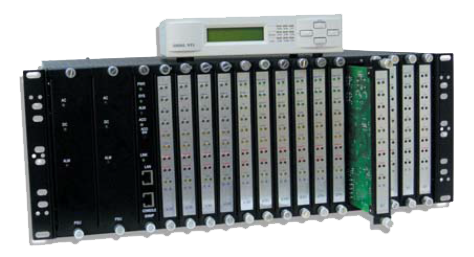

Proscend G.SHDSL ATM Total Solution include the rack with the line card in the central side and network terminal unit (ATM) at customer premises. The rack solution is a cost-effective central unit for carriers and service providers to provide their customers with symmetric high-speed digital subscriber line (G.SHDSL) services via consumer premise equipments (CPEs) either with 5210 G.SHDSL router 4 Ethernet port.

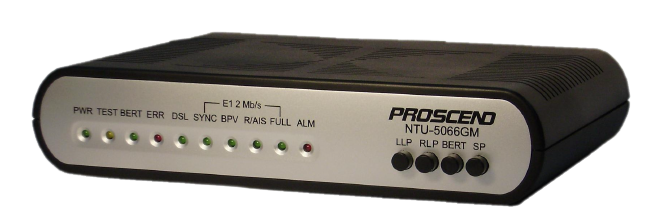

The G.SHDSL NTU 5066GM series offers four different interface models: El interface, Serial interface, Ethernet interface and Co-direction interface. They can connect customers to high-speed TDM services .
Proscend 5099B Series 2-Wire/4-Wire Shdsl.bis NTU is a telecommunication product designed for carriers and SME users. The standalone modems offer a variety of choices for data interfaces to meet different connection needs. Proscend 5099B Series features E1/T1, Serial and Ethernet interfaces, allowing connection to different DTE types. When equipped with multiple interfaces, the standalone Shdsl.bis NTU combines user traffic over the Shdsl link. Available DTE combinations include E1+V.35/X.21, T1+V.35/X.21, E1+Ethernet, T1+Ethernet and V.35/X.21+Ethernet that can work simultaneously to share the DSL bandwidth.
